Files for MR-1 Rail Covers V2

Files for MR-1 Rail Covers V2

Not compatible with MR-1 Gantry Riser Blocks add on.

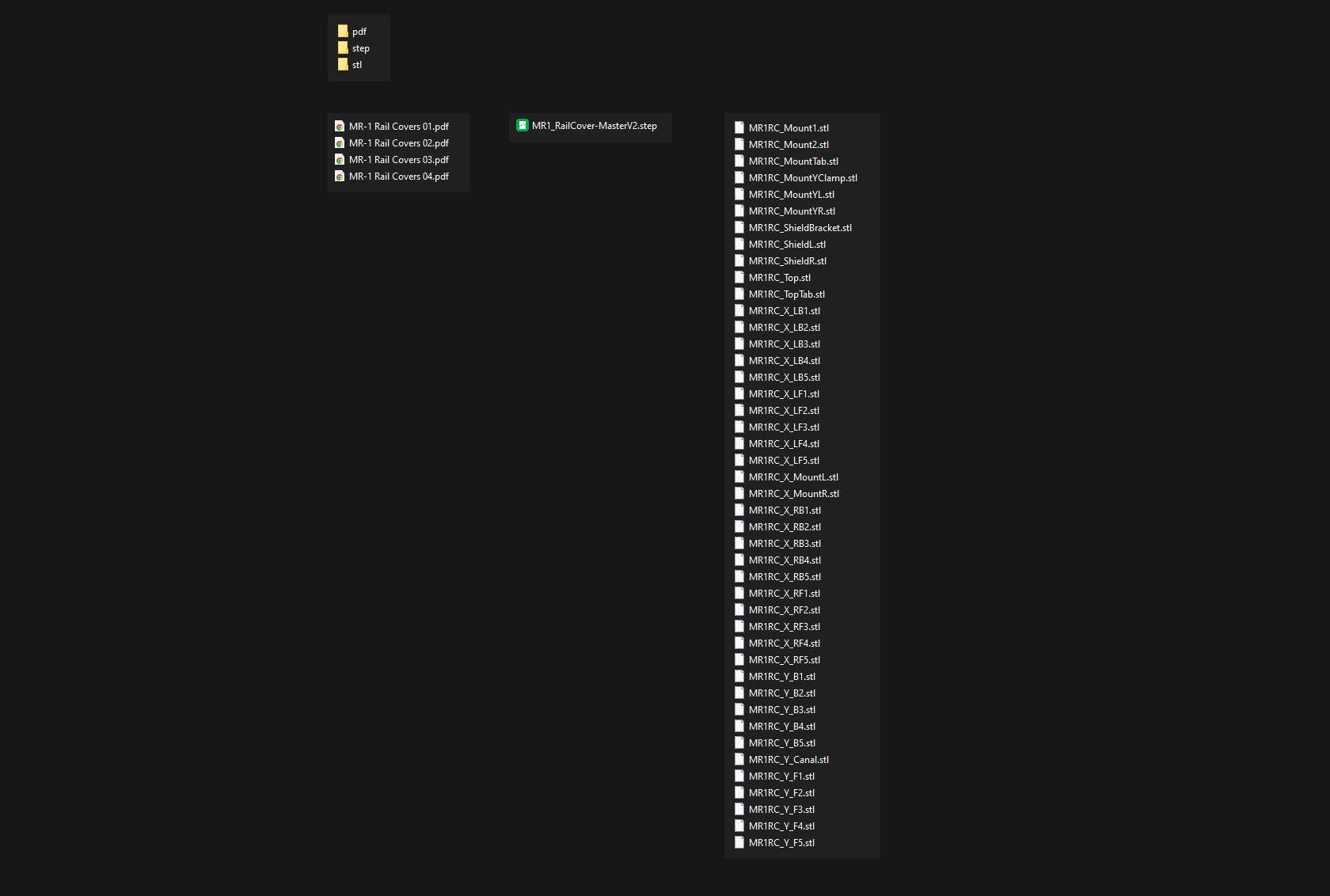

This download product includes:

• pdf - diagram depicting part names

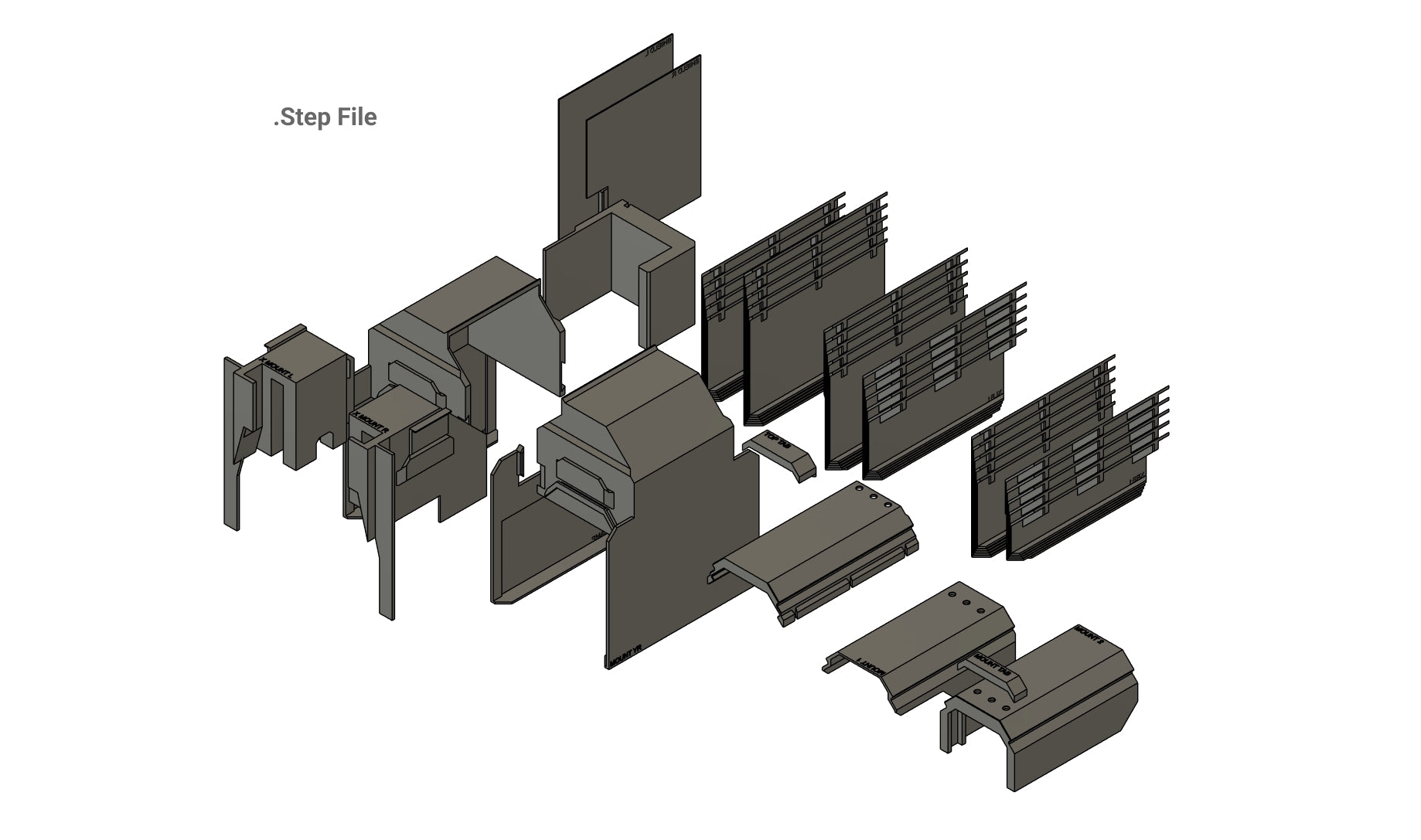

• step file - a file that can be imported into CAD for modifying
• stl - files for 3D Printing

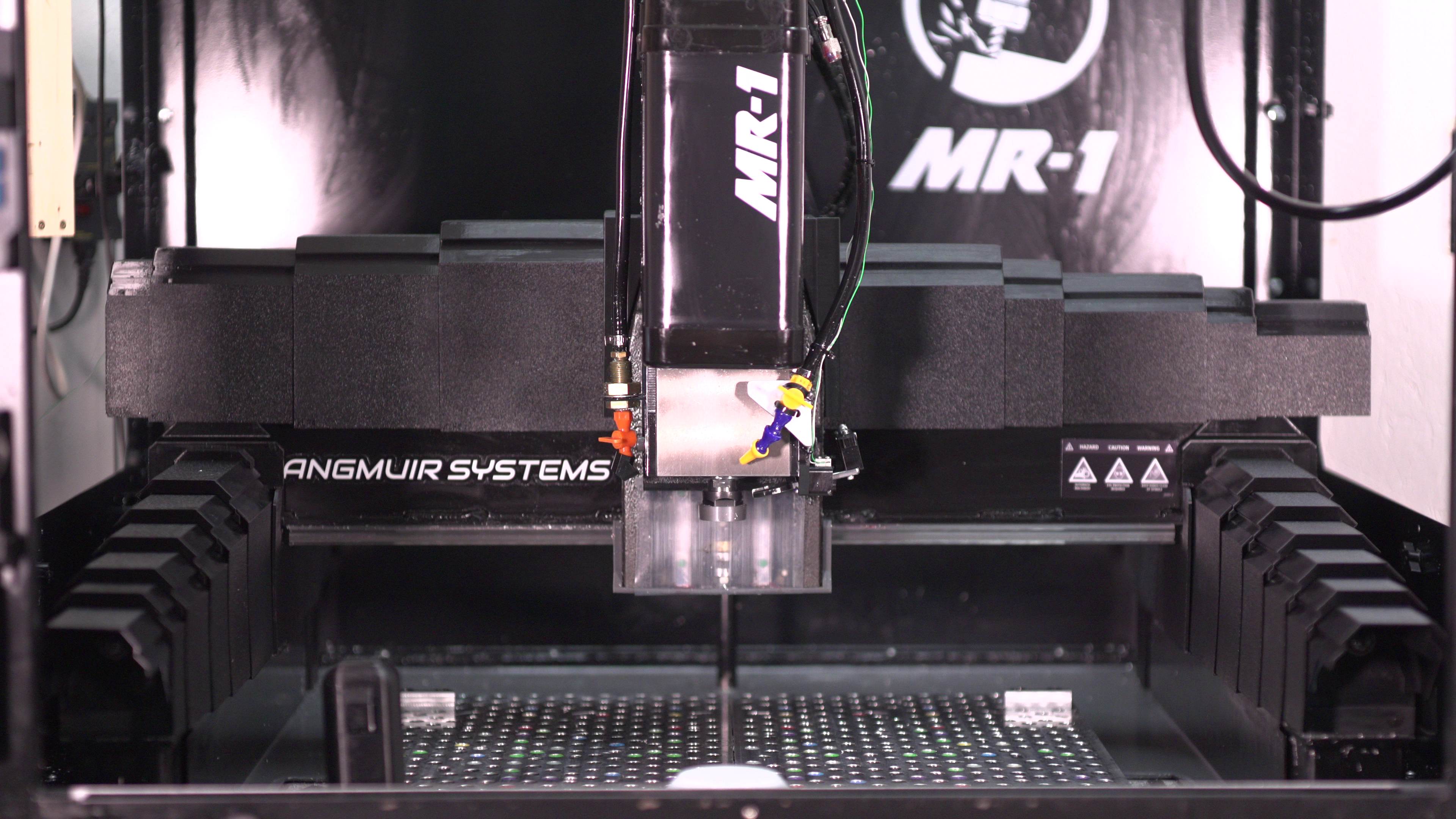

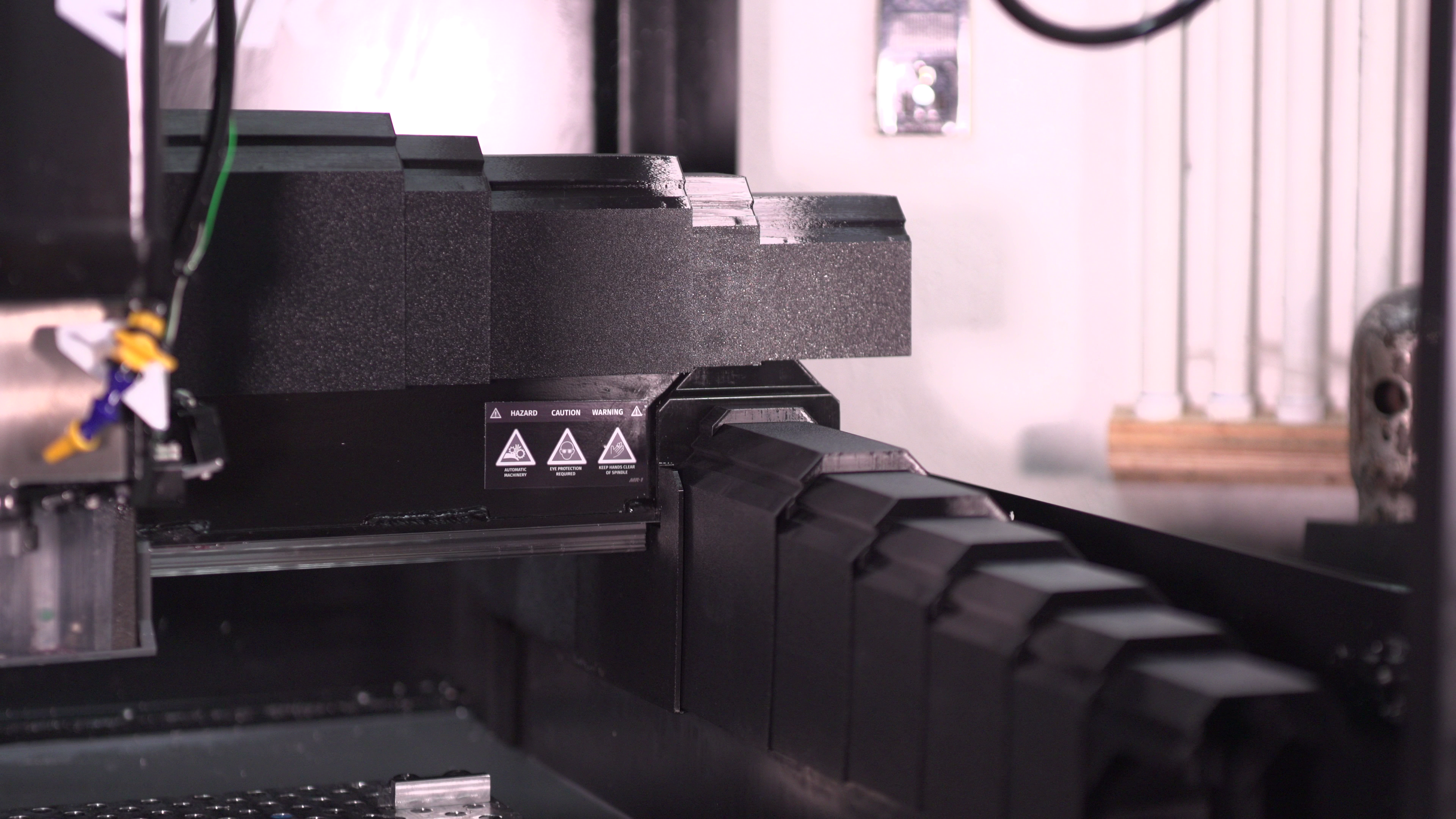

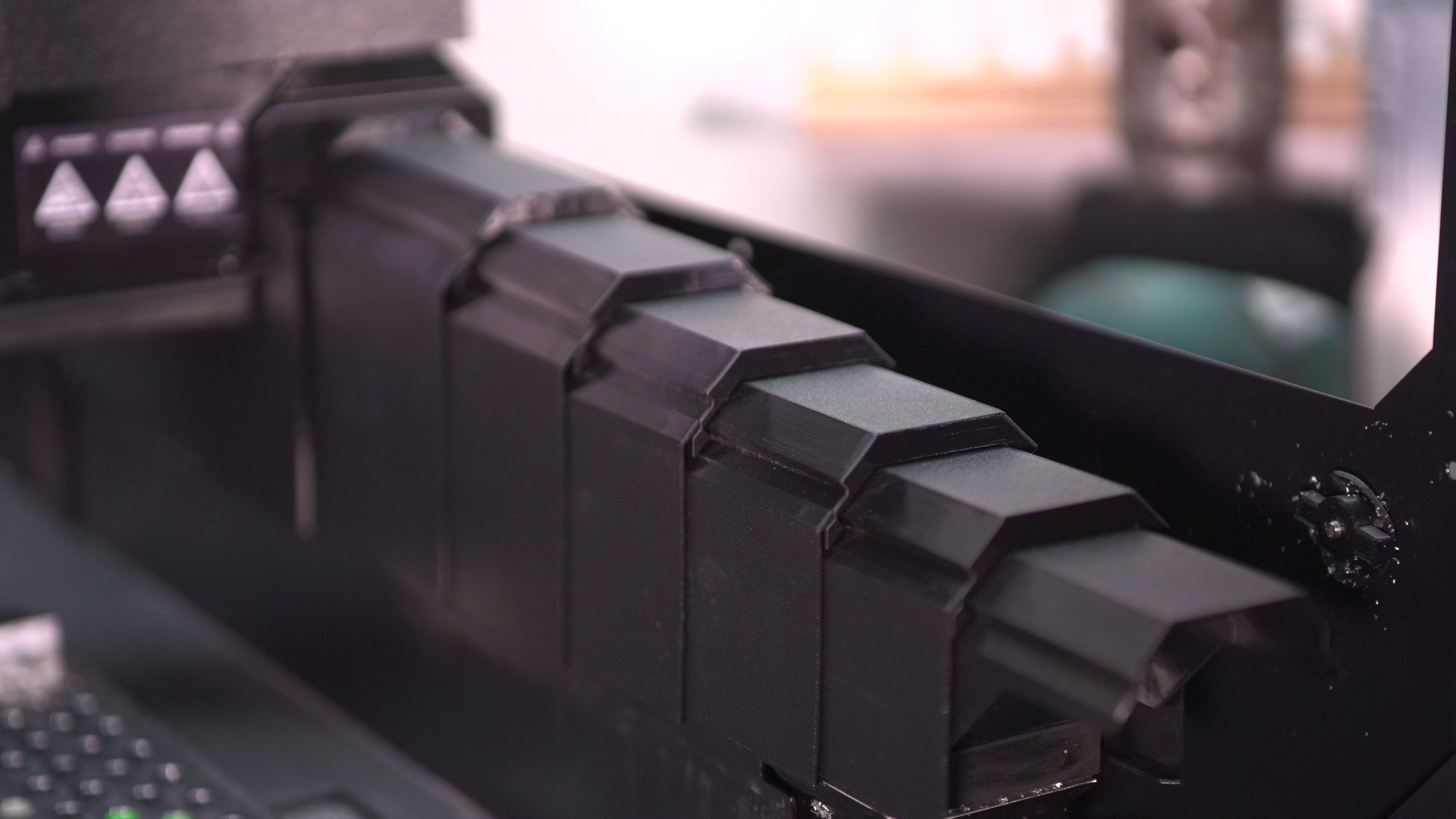

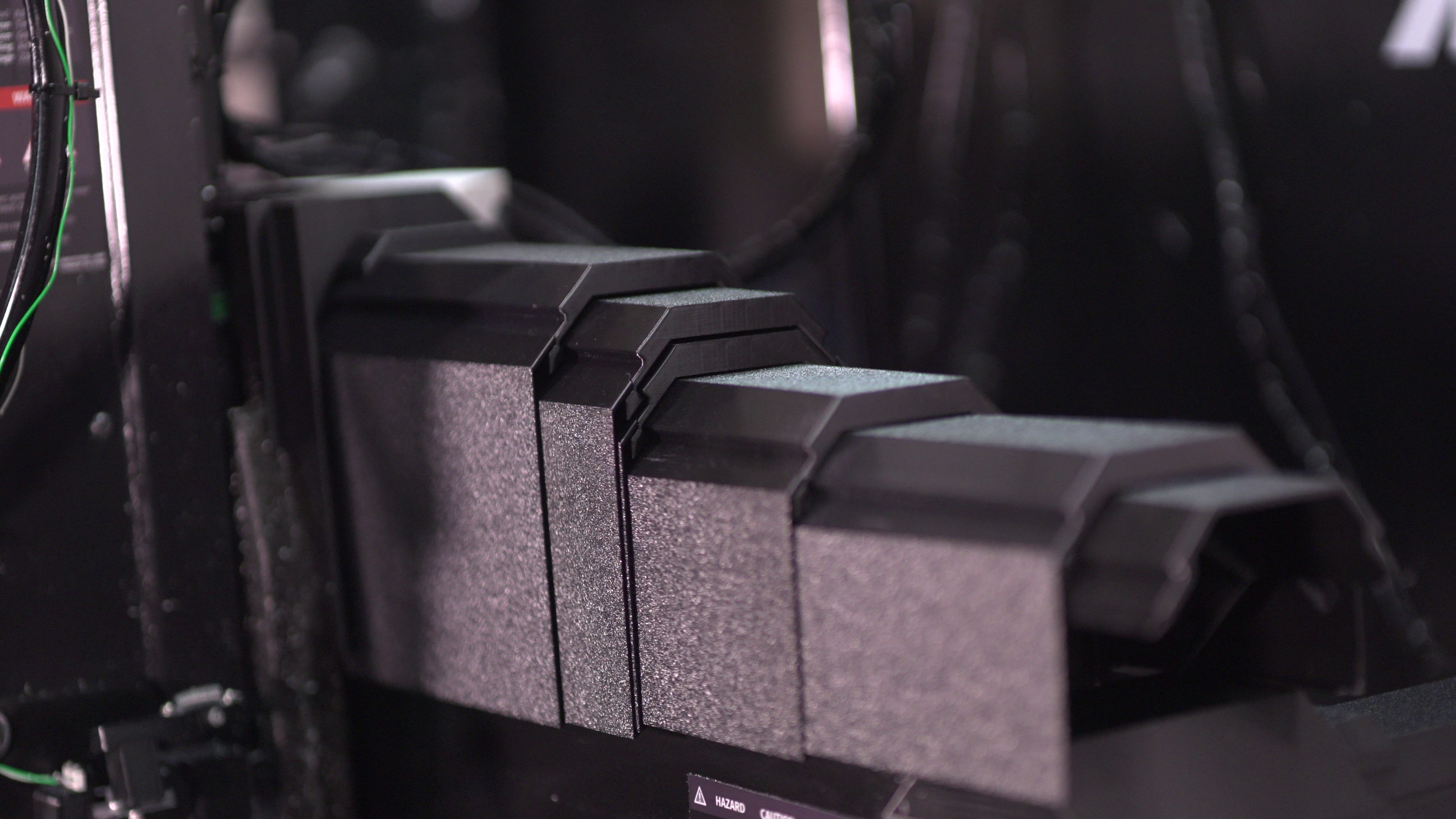

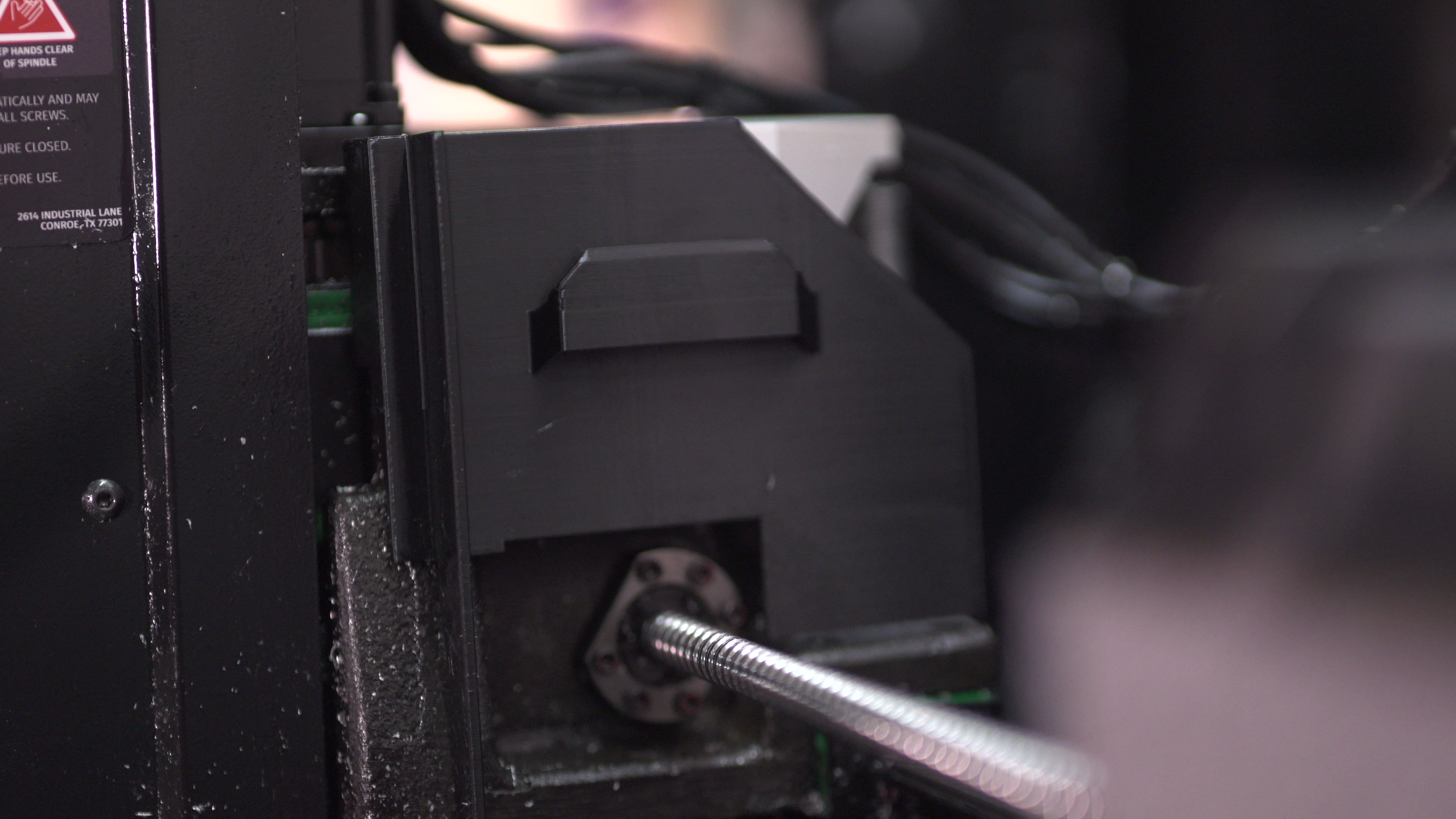

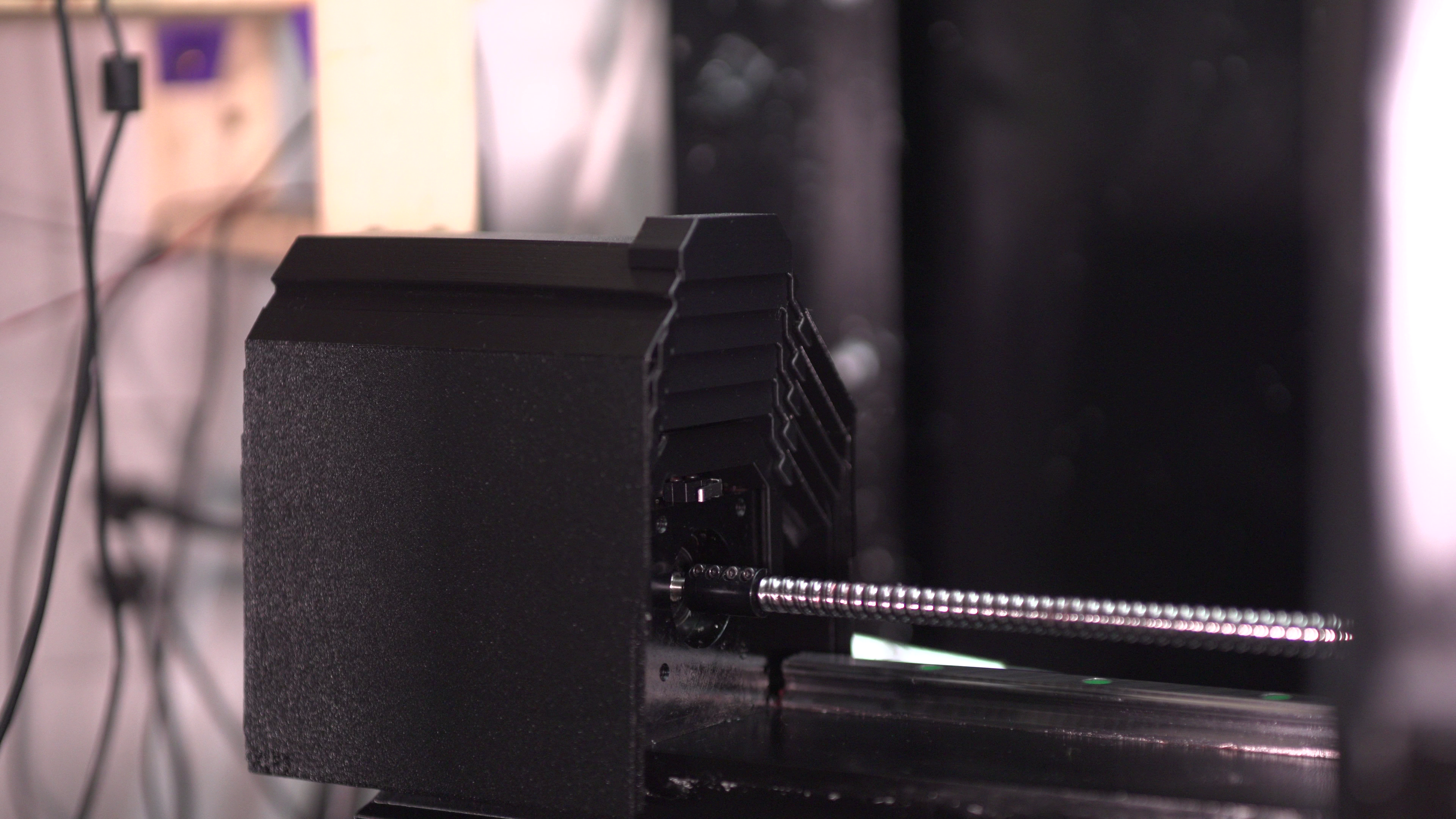

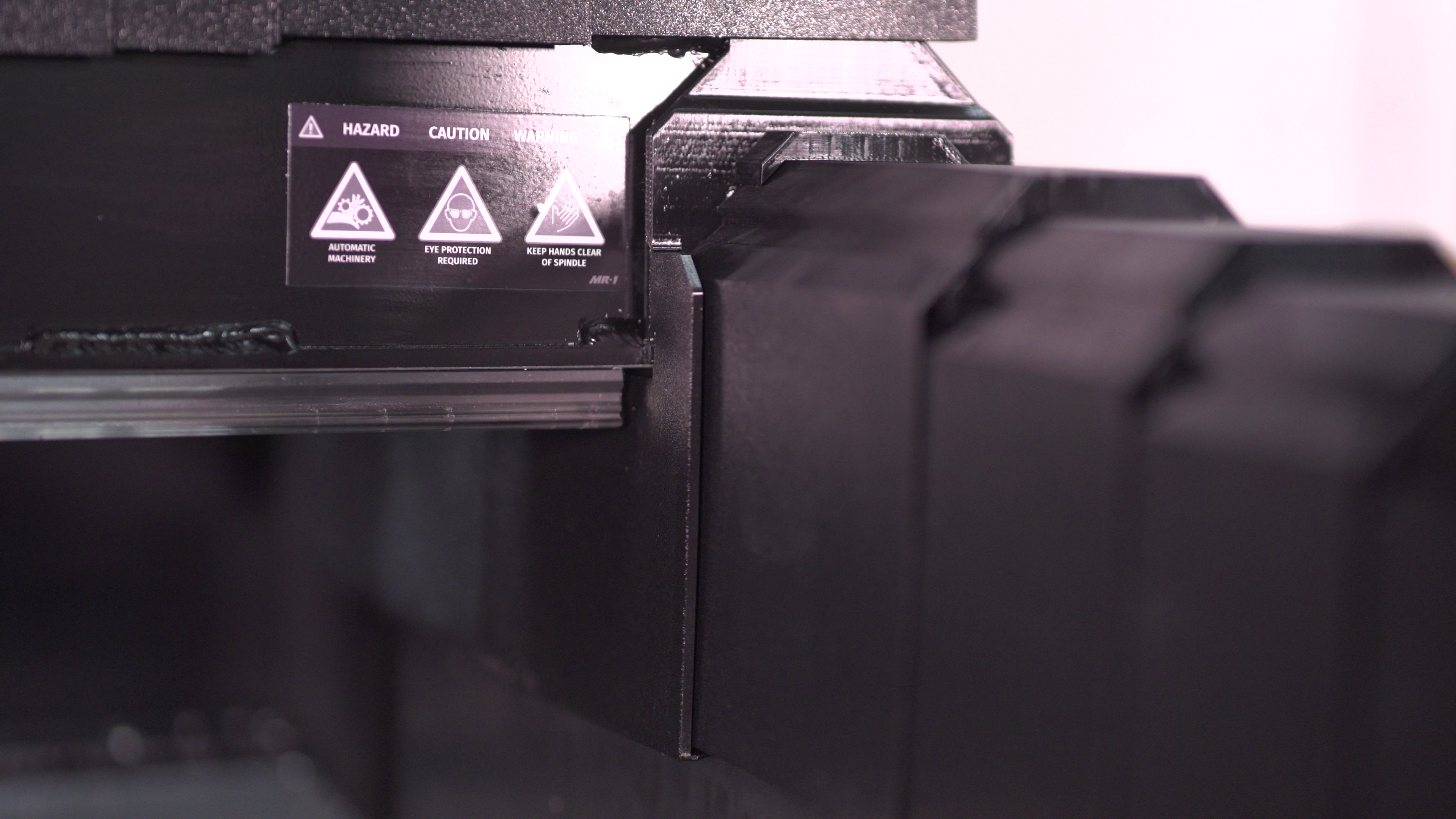

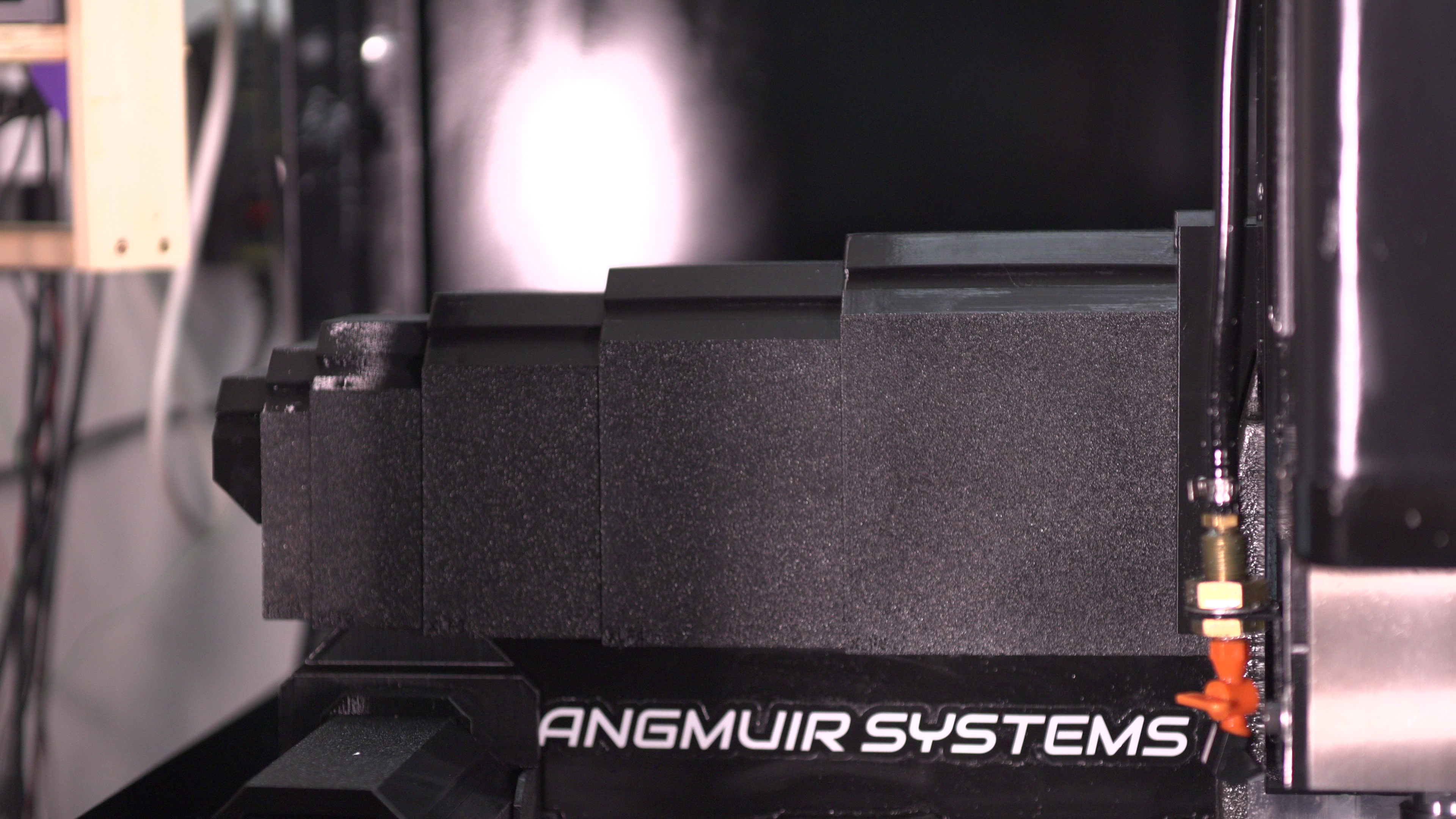

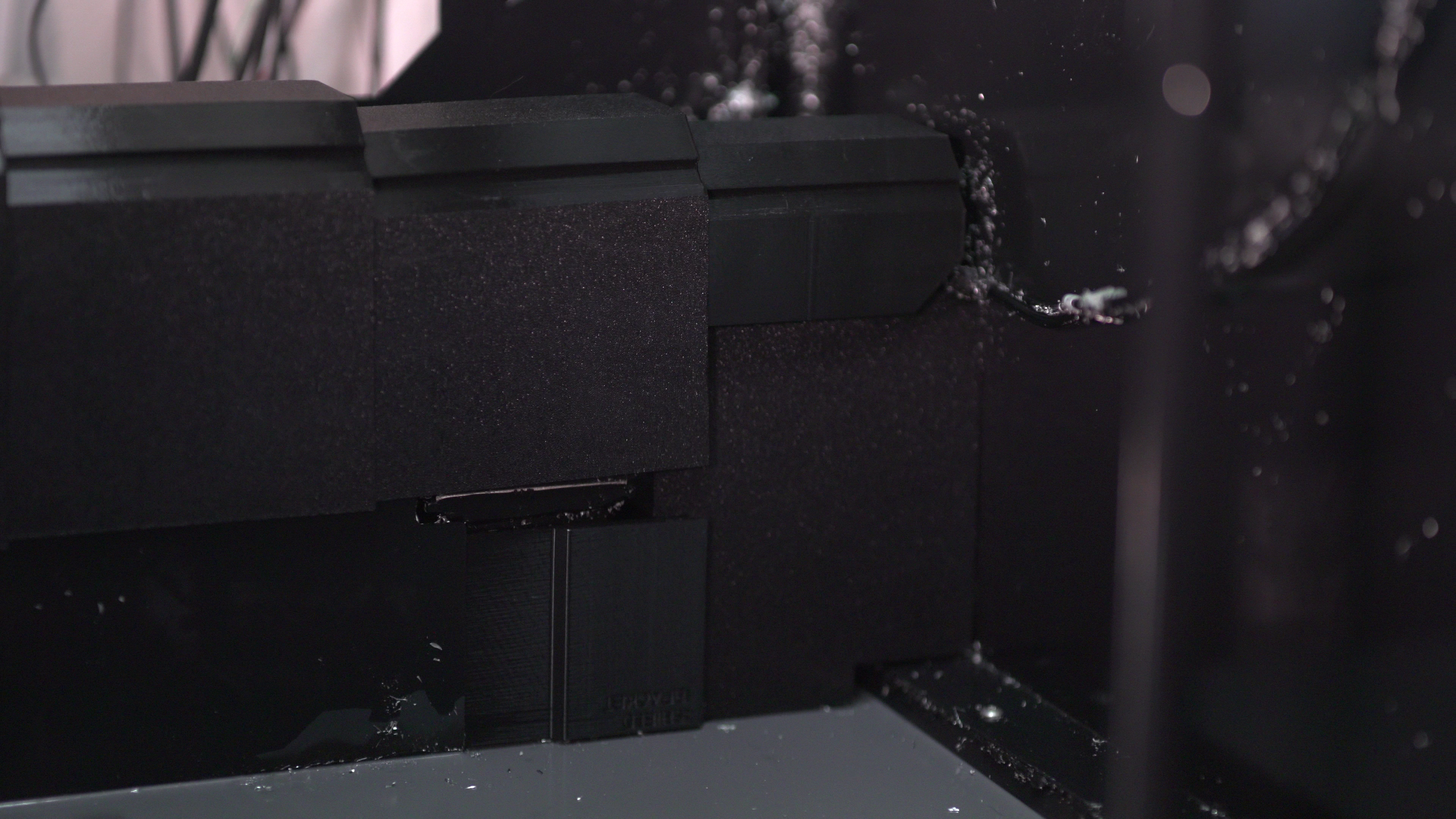

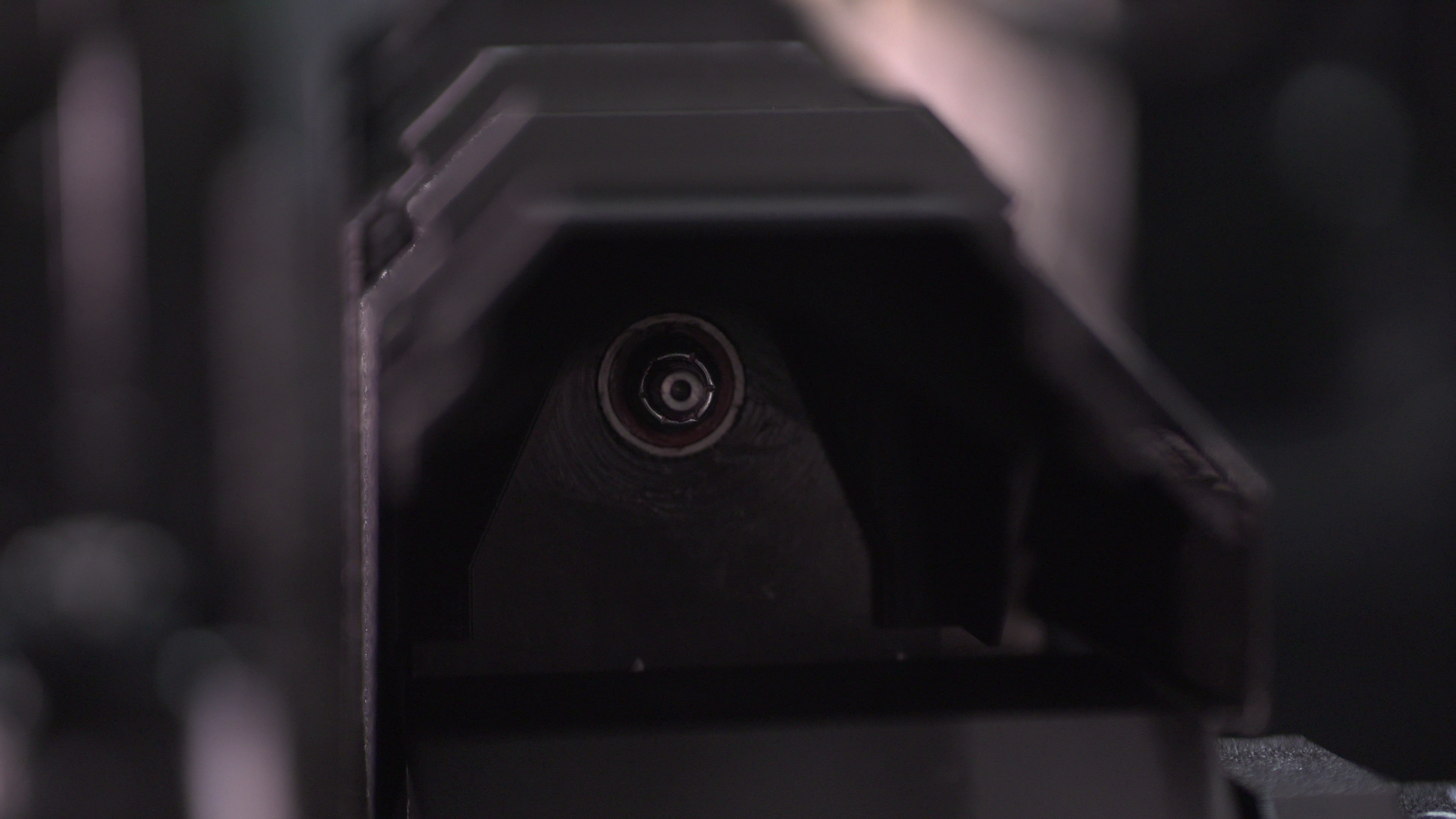

Version 2 design is entirely 3D printable. It features fit into place mounts with no drilling required. The sliding covers are air gapped between the top and bottom to drastically reduce cutting fluid from dripping down onto your rails. The stepper mount encapsulates the stepper motor protecting the motor from cutting fluid.

• Total printed parts 142
• Est. Total parts printing time: 120 hrs.
• Minimum printer bed size (build volume) 220 x 220 x 220 mm
• Recommended print material PETG

Key Features & Assembly Video:

https://youtu.be/epMZJAw6olI
